Category: FRL's & Vacuum Exhaust Filters
Product Code: Stainless Steel Air Preparation Units
Filters

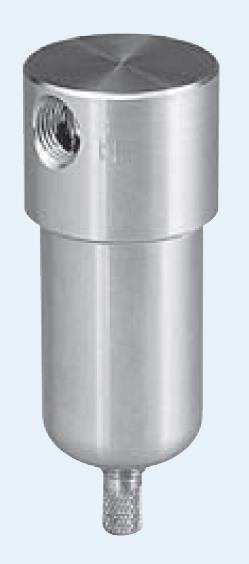

Air Line Miniature Filter
FF504-02DGSS
|
Specifications: Flow: 23 SCFM Port Size: 1/4" NPT Drain: Manual Filter Rating: 5 micron Maximum Pressure: 300 PSIG (20.7 bar) Maximum Temperature: 180°F (82°C) Weight: 0.6 lbs Bowl Capacity: 1 oz. |
|
Materials of Construction: Body: 316 Stainless Steel Bowl: 316 Stainless Steel Seals: Fluorocarbon Element: Polyethylene Retainer: Acetal Drain: 316 Stainless Steel Replacement Element: EK504VY |

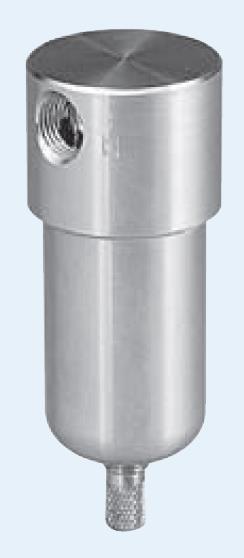

Coalescing Miniature Filter
FF501-02DHSS
|
Specifications: Flow: 8 SCFM @ 100 PSIG inlet with 1.5 PSIG drop Port Size: 1/4" NPT Drain: Manual Coalescing Efficiency: 99.97% Maximum Pressure: 300 PSIG (20.7 bar) Maximum Temperature: 180°F (82°C) Weight: 0.6 lbs Bowl Capacity: 1 oz. |
|
Materials of Construction: Body: 316 Stainless Steel Bowl: 316 Stainless Steel Seals: Fluorocarbon Element: Borosilicate Glass Fibers End Caps: Nylon Drain: 316 Stainless Steel Replacement Element: 6HM06-013 X 10 |

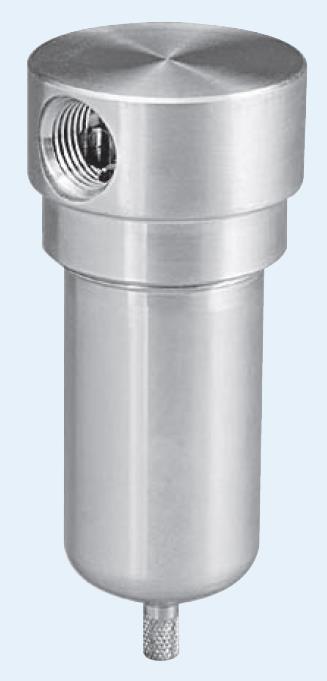

Air Line Filter
FF10-04DGSS
|
Specifications: Flow: 72 SCFM Port Size: 1/2" NPT Drain: Manual Filter Rating: 5 micron Maximum Pressure: 300 PSIG (20.7 bar) Maximum Temperature: 180°F (82°C) Weight: 1.88 lbs. Bowl Capacity: 4 oz. |
|
Materials of Construction: Body: 316 Stainless Steel Bowl: 316 Stainless Steel Seals: Fluorocarbon Vane Plate: Acetal Element: Polyethylene Retainer: Acetal Drain: 316 Stainless Steel Replacement Element: EK55G |

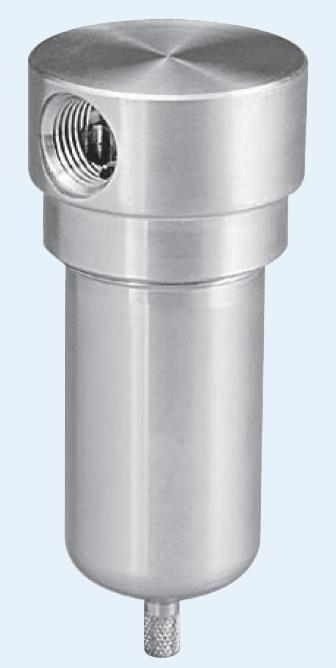

Coalescing Filter
FF11-04DJSS
|
Specifications: Flow: 16.5 SCFM @ 100 PSIG inlet with 1.5 PSIG drop Port Size: 1/2" NPT Drain: Manual Coalescing Ef#ciency: 99.97% Maximum Pressure: 300 PSIG (20.7 bar) Maximum Temperature: 180°F (82°C) Weight: 1.88 lbs Bowl Capacity: 4 oz. |
|
Materials of Construction: Body: 316 Stainless Steel Bowl: 316 Stainless Steel Seals: Fluorocarbon Element: Borosilicate Glass Fiber End Caps: Nylon Drain: 316 Stainless Steel Replacement Element: 6HM07-019 X 10 |
Regulators

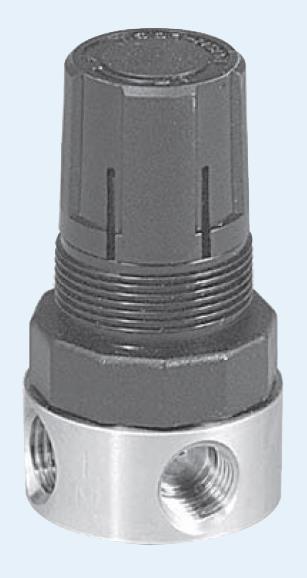

Miniature Regulator
FR364-02CSS
|
Specifications: Flow: 16 SCFM Port Size: 1/4" NPT Gauge Port: 1/4" NPT Outlet Pressure Range: 0-125 PSIG (0-8.5 bar) std. Max Inlet Pressure: 300 PSIG (20.7 bar) Temperature Range: 40-150°F (4.4-65.6°C) Weight: 0.5 lbs Operation: Fluorocarbon Diaphragm Relieving: Standard (non-relieving optional) |
|
Materials of Construction: Body: 316 Stainless Steel Spring Cage: Celcon Inner Valve: 316 Stainless Steel Bottom Plug: 316 Stainless Steel Seals: Fluorocarbon Adjustment Mechanism: 316 Stainless Steel Spring and 316 Stainless Steel Adjusting Screw |

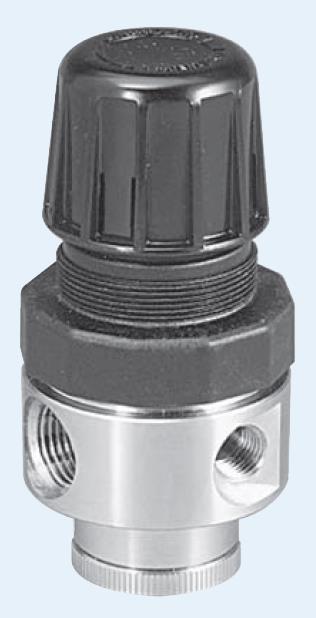

Regulator
FR10-04CSS
|
Specifications: Flow: 80 SCFM Port Size: 1/2" NPT Gauge port: 1/4" NPT Outlet Pressure Range: 0-125 PSIG (0-8.5 bar) std. Max Inlet Pressure: 300 PSIG (20.7 bar) Temperature Range: 40-150°F (4.4-65.6°C) Weight: 1.79 lbs Operation: Fluorocarbon Diaphragm Relieving: Standard (non-relieving optional) |
|
Materials of Construction: Body: 316 Stainless Steel Spring Cage: Glass-filled Celcon Inner Valve: 316 Stainless Steel Bottom Plug: 316 Stainless Steel Seals: Fluorocarbon Adjustment Mechanism: 316 Stainless Steel Spring and 316 Stainless Steel Adjusting Screw |
"Piggyback" Filter/Regulators

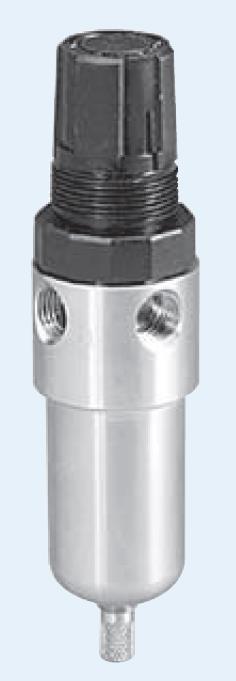

Miniature "Piggyback" Filter/Regulator
FB548-02DGCSS
|
Specifications: Flow: 20 SCFM Port Size: 1/4" NPT Gauge Port: 1/4" NPT Drain: Manual Filter Rating: 5 micron Outlet Pressure Range: 0-125 PSIG (0-8.5 bar) std. Max Inlet Pressure: 300 PSIG (20.7 bar) Temperature Range: 40-150°F (4.4-65.6°C) Weight: 0.6 lbs Operation: Fluorocarbon Diaphragm Relieving: Standard (non-relieving optional) Bowl Capacity: 1 oz. |
|
Materials of Construction: Body: 316 Stainless Steel Bowl: 316 Stainless Steel Spring Cage: Celcon Inner Valve: 316 Stainless Steel Seals: Fluorocarbon Adjustment Mechanism: 316 Stainless Steel Spring and 316 Stainless Steel Adjusting Screw Replacement Element: EK504VY |

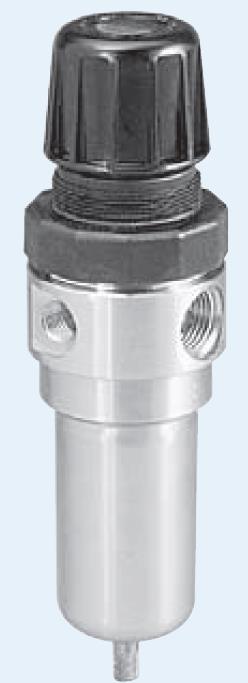

"Piggyback" Filter/Regulator
FB11-04DGCSS
|
Specifications: Flow: 72 SCFM Port Size: 1/2" NPT Gauge Port: 1/4" NPT Drain: Manual (automatic optional) Filter Rating: 5 micron Outlet Pressure Range: 0-125 PSIG (0-8.5 bar) std. Max Inlet Pressure: 300 PSIG (20.7 bar) Temperature Range: 40-150°F (4.4-65.6°C) Weight: 2.42 lbs Operation: Fluorocarbon Diaphragm Relieving: Standard (non-relieving optional) Bowl capacity: 4 oz. |
|
Materials of Construction: Body: 316 Stainless Steel Bowl: 316 Stainless Steel Spring Cage: Glass-filled Celcon Inner Valve: 316 Stainless Steel Seals: Fluorocarbon Adjustment Mechanism: 316 Stainless Steel Spring and 316 Stainless Steel Adjusting Screw Replacement Element: EK55G |
Lubricator

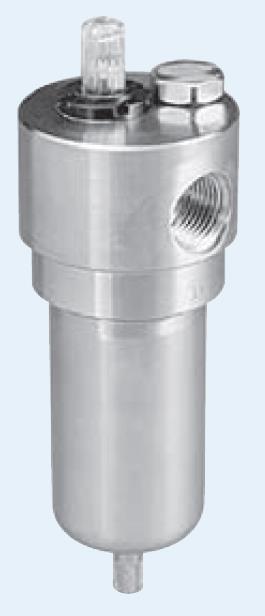

Lubricator
FL10-04DSS
|
Specifications: Flow: 105 SCFM Port Size: 1/2" NPT Maximum Pressure: 300 PSIG (20.7 bar) Temperature Range: 40-150°F (4.4-65.6°C) Weight: 2.3 lbs Bowl Capacity: 4 oz. |
|
Materials of Construction: Body: 316 Stainless Steel Bowl: 316 Stainless Steel Dip Tube: 316 Stainless Steel Fill Plug: 316 Stainless Steel Sight Dome/Drip Spout: Polyurethane Seals: Fluorocarbon Retainer: Nylon By-pass Assembly: Polyurethane and 316 Stainless Steel |
